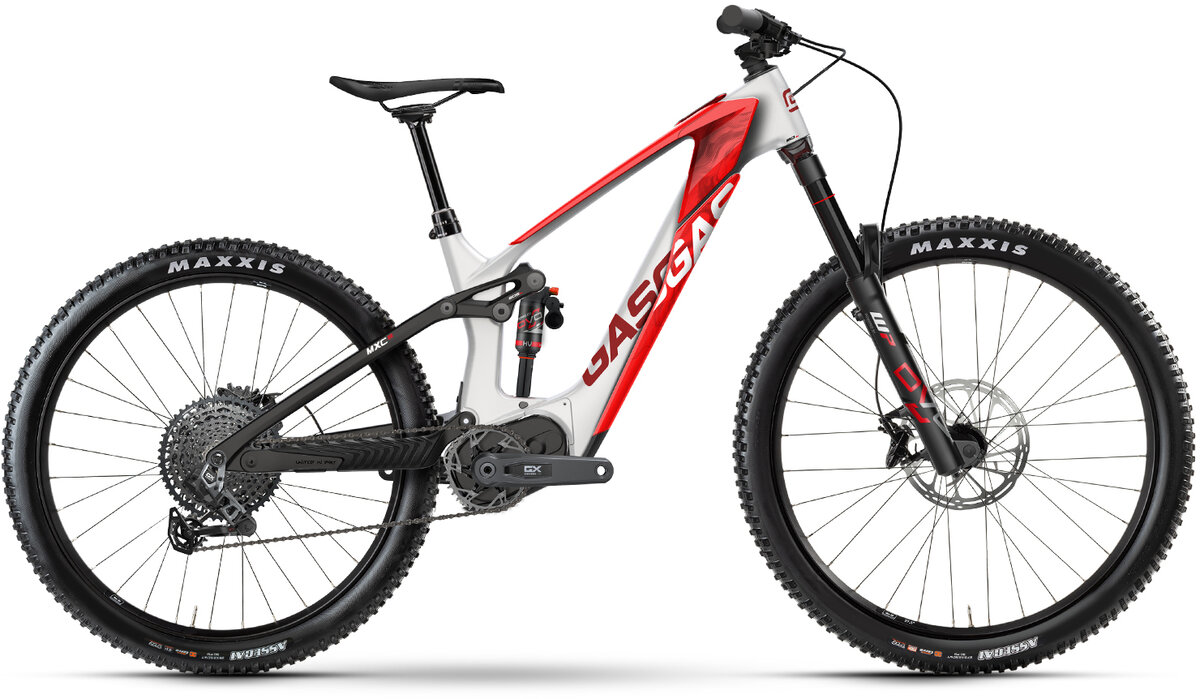

GasGas MXC 5 - 2024

The MXC 5 is a playful all-mountain, all-rounder. A package of brazen fun, it's built for thrills and high-energy trail seekers. With a 160/140mm suspension platform, it's massively capable in any surrounding and is a bike that is not defined by any one genre. Bike park laps, rowdy natural trails, jump lines, free riding in the mountains...it does it all in true GASGAS style.

CAPABLE CHASSIS
The carbon frame, with mullet wheel set-up and size-specific rear-end are matched with progressive geometry and playful kinematics for a ride that’s super agile and instantly confidence-inspiring.

POWERED BY SRAM
SRAM's new Eagle Powertrain provides 90Nm of torque, 680W peak power and some dynamic auto-shift and coast-shift functions. The 630Wh battery and optional 250Wh Range Extender balance weight and range.

WP SUSPENSION PARTNERSHIP WITH DVO
The MXC 5’s suspension comes courtesy of DVO powered by WP, with ground-breaking cone-valve technology found for the first time in the eMTB space.

SPECS:

FRAME: 29/27.5", Carbon, Integrated battery, Boost, 140 mm

FORK: DVO Onyx D1CV SL, Air, 160 mm, tapered

SHOCK: DVO Topaz AIR CV, Air, 205x60 mm

MOTOR: SRAM Eagle Powertrain Drive Unit, 250 W, 90 Nm

BATTERY: SRAM Eagle Powertrain, 630 Wh

CHARGER: SRAM Eagle Powertrain Charger, 4 A

DISPLAY: SRAM Eagle Powertrain AXS Bridge Display

FRONT BRAKE: SRAM G2 RS, 4-piston, Hydraulic disc brake

FRONT BRAKE ROTOR: SRAM Centerline, 220 mm, 6-hole

REAR BRAKE: SRAM G2 RS, 4-piston, Hydraulic disc brake

REAR BRAKE ROTOR: SRAM Centerline, 200 mm, 6-hole

REAR DERAILLEUR; SRAM GX Eagle Transmission, 12-S

CASSETTE: SRAM XS-1275, 10-52 T

CHAIN: SRAM GX Eagle Transmission Flattop

CHAINRING: SRAM XX Eagle Transmission

CRANK ARM: SRAM GX Eagle E-MTB

SHIFT LEVER: SRAM AXS Pod Ultimate Controller

FRONT WHEEL: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: GASGAS DA210F, 6-hole, 15x110 mm, thru axle

REAR WHEEL: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: GASGAS DA210R, 6-hole, 12x148 mm, thru axle

FRONT TIRE: Maxxis Assegai, 63-622, 29, 2.5

REAR TIRE: Maxxis Minion DHR II, 62-584, 27.5 x 2.4

STEM: GASGAS 35, 0 °, Ahead

HEADSET: Acros AZX-579 ZS56/ZS56

HANDLEBAR: GASGAS Riser 35 mm, 780 mm, Sweep: 9 °, Rise: 20 mm

GRIPS; GASGAS MTB, Lock-on grips

SADDLE: Selle San Marco GND

SEAT POST: GASGAS Pro, 34.9 mm, Dropper post

PEDALS: GASGAS, aluminum

CHAIN GUIDE: Direct Mount
