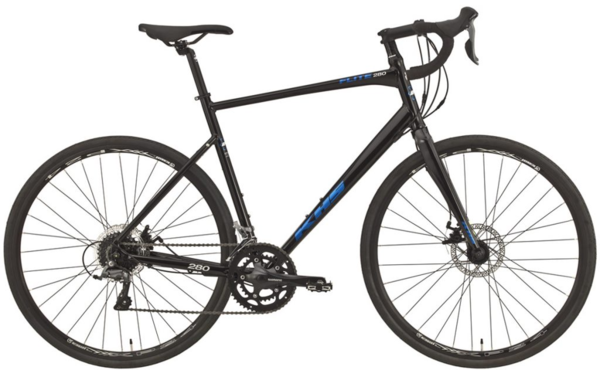

KHS Flite 280

KHS Flite 280
This item is currently not available.


Road bikes are fast-moving, nimble machines that can take you to see the world. These bikes are lighter weight than most other bicycles and have higher gearing to allow you to ride with much more speed to really put in the miles on your daily ride. KHS makes many levels of road bikes, from full-blown race bikes to fun sport ride bikes to off-road gravel bikes that take you to see the beauty of the earth.

Geometry Chart:
s/t c-t 415/16.3 450/17.7 485/19.1 520/20.5 555/21.9
h/t° 70.5° 71.5° 72° 72° 72°
s/t° 74.5° 74° 73.5° 73° 73°
t/t effectv 508/20 29/20.8 551/21.7 574/22.6 591/23.3
c/s 405/15.9420/16.5 420/16.5 420/21.7 420/16.5 420/16.5
BB Height 276/10.9 279/11 420/26.5 279/11 276/10.9
s.o. 728/28.6 757/29.8 785/30.9 810/31.9 834/32.8
h/t L 114/4.5 137/29.8 159/6.3 183/7.1 209/8.2
Stack 542/21.3 564/22.2 587/23.1 610/24 633/24.9
Reach 357/14.1 367/14.4 377/14.8 387/15.3 397/15.6


Frame New Disc Design, 6061 Aluminum w/Custom Formed Double Butted T/T & D/T, Internal Cable, Flat Mount Disc, Replaceable Derailleur Hanger
Fork Carbon w/Aluminum Steerer, Flat Mount Disc, Straight Blades
Rims Weinmann XP-24 Aluminum Double Wall
Hubs Front: KK Aluminum Disc, QR
Rear: KK Aluminum Disc QR, Cassette
Spokes 14G Stainless Black, 24x28
Tires Kenda K-193 Kwest Road, 700x28C
Bottom Bracket FSA Cartridge Bearing
Crankset FSA Vero Aluminum, 50/34T, XS:165, S-M:170, L-XL-175
Shifters Shimano Claris STI, ST-R2000
Front Derailleur Shimano Claris FD-R2000, 31.8mm
Rear Derailleur Shimano Claris RD-R2000SS
Cassette/Freewheel Shimano HG200-8, 12-32T, 8-Speed
Chain KMC Z8.3 w/Missing Link
Brakes Tektro MD-C550 Dual Piston, Flat Mount Road Cable Disc Brake w/160mm Rotors
Brake Levers Shimano Claris ST-R2000
Handlebars FSA Vero Compact Bend, 31.8, XS-ML:42cm, L-XL:44cm, Ladies:38cm
Tape/Grips Cushion Tape
Stem Aluminum 3D Forged, Threadless 4-bolt, 7-degree, 31.8, XS-S:90mm, M-ML:100mm, L-XL:110mm, Ladies: 80mm
Headset FSA Integrated Cartridge Bearing
Seatpost KHS Aluminum Micro-Adjust, 27.2
Saddle DDK Road Padded
Pedals Full Aluminum w/DU Bearing

* Subject to change without notice.
