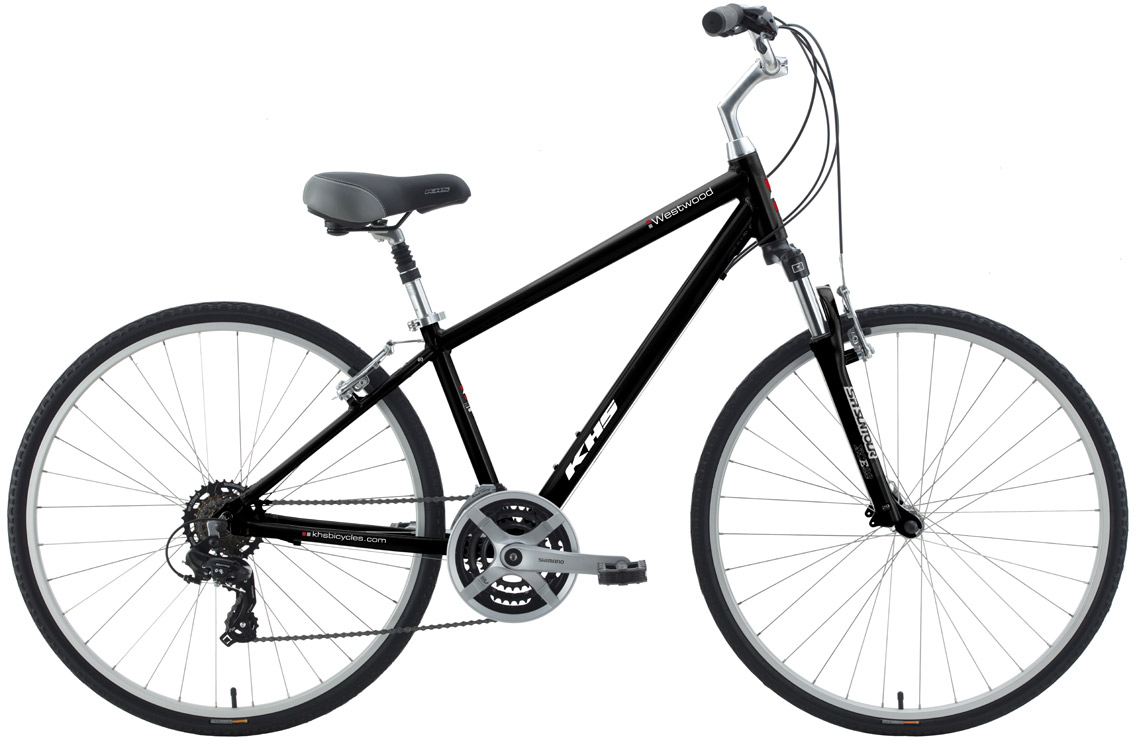

KHS Westwood - 2022

KHS Westwood
Please select options


Shouldn’t all bikes be comfortable? You would think so, but many types of bicycle are designed for specific types of riding Comfort bikes are designed specifically to be very easy and comfortable to ride. The riding position is more upright, putting less stress on the back, hips, shoulders and arms. These bikes also have cushy saddles and grips, easy shifting gears, and often suspension forks as well.

Geometry Chart:
s/t c-t 350/13.8 400/15.7 450/17.7 500/19.7
h/t° 70.5° 70.5° 70.5° 70.5°
s/t° 71° 71° 71° 71°
t/t effectv 580/22.8 592/23.3 604/23.8 616/24.3
c/s 465/18.3 465/18.3 465/18.3 465/18.3
BB Height 285/11.2 285/11.2 285/11.2 285/11.2
s.o. 747/29.4 780/20.7 808/31.8 837/33
h/t L 127/5 139/5.5 151/5.9 163/6.4
Stack 608/23.9 619/24.4 630/24.8 642/25.3
Reach 370/14.6 378/14.9 386/15.2 394/15.5


Frame 6061 Aluminum, TIG welded, Internal Cables
Fork SR XCE28, 80mm Travel
Rims Weinmann Aluminum, 700c, 32H
Hubs Aluminum, QR, Rubber Seal
Spokes 14G Stainless, 32x32
Tires Kenda Khan, 700 x 38c, Skin Wall w/Anti-Puncture
Bottom Bracket Cartridge Bearing
Crankset Shimano FC-TY501, 48/38/28T w/Chainguard, 170mm
Shifters Shimano, ST-EF510
Front Derailleur Shimano Tourney, TY510, 31.8mm
Rear Derailleur Shimano Tourney, RD-TY300D
Cassette/Freewheel Shimano Mega Range, 14-34T, 7-Speed
Chain KMC Z8.3
Brakes Aluminum Linear Pull w/ABS System
Brake Levers Shimano ST-EF510
Handlebars Aluminum, 100mm rise, 660mm
Tape/Grips Comfort Kraton
Stem Aluminum Quill, 25 Degree
Headset 1-1/8” Threaded, Zero Stack w/Aluminum Conical Top Cap
Seatpost Aluminum Suspension, 27.2mm
Saddle DDK Wide Comfort, Memory Foam w/Elastomer Spring
Pedals Platform w/Non-slip Tread, DU Bearings

* Subject to change without notice.

Part Numbers

Option UPC MPN
Black / Small 756928938924 42-0240
